Post-Layout Simulation

PCB Layouts are extracted using Ansys SIWave.  An s-parameter file of the final layout is created, concatenations with connectors and other boards are done to create a final simulation of the channel.

SIWave Extraction

Keysight ADS is then run to confirm statistical eye compliance using IBIS AMI models.

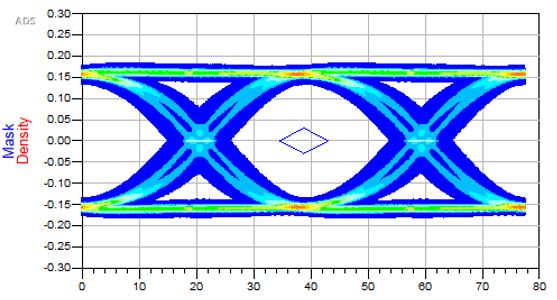

ADS Statistical Eye 28Gbps
